Ahmed Jamleh, BDS, MSc, PhD, Amjad Alghaihab, DMD,
Abdulmohsen Alfadley, BDS, MSc, FRCD(C), Hussam Alfawaz, BDS, MS, Abdullah Alqedairi, BDS, MS, and Khalid Alfouzan, BDS, MSEd
Introduction: The aim of this in vitro study was to compare the cyclic fatigue resistance and torsional resis-tance of EdgeTaper Platinum (ETP) with those of Pro-Taper Gold (PTG) at simulated body temperature.
Methods: ETP and PTG ﬁles with #25 tip size were selected. Cyclic fatigue tests were performed in a stain-less steel artiﬁcial canal until ﬁle fracture occurred. The time to fracture was recorded. For the torsional resis-tance testing, the apical 5 mm of the ﬁle was ﬁrmly secured with acrylic resin, and the assembly was ﬁxed over torque gauge device. A uniform torsional stress was applied with continuous rotation motion until frac-ture occurred. The torque at failure was recorded. Both experiments were conducted at 35 1 C. Fractured sur-faces were tested via scanning electron microscopy. Sta-tistical analysis was performed using independent Student t test at 5% signiﬁcance level.

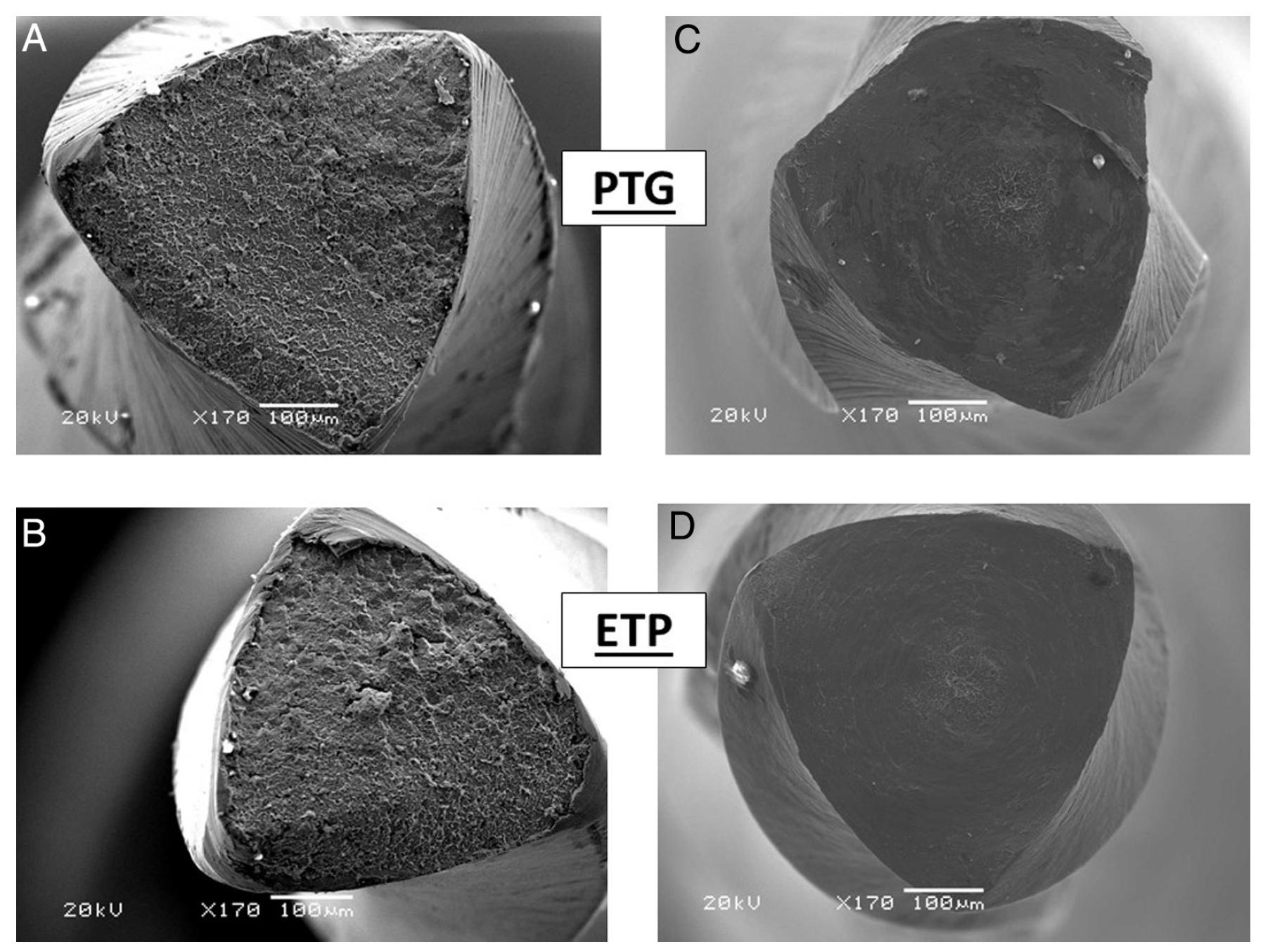

Results: The ETP had superior cyclic fatigue resistance than PTG (P < .01). However, it exhibited lower torsional resis-tance (P < .05). The ETP and PTG showed typical fea-tures of cyclic and torsional fatigue behavior under scanning electron microscopy.
Conclusions: The ETP exhibited superior resistance to cyclic fatigue but failed to show any improvement in the torsional resistance compared with PTG. (J Endod 2019;45:611–614)
